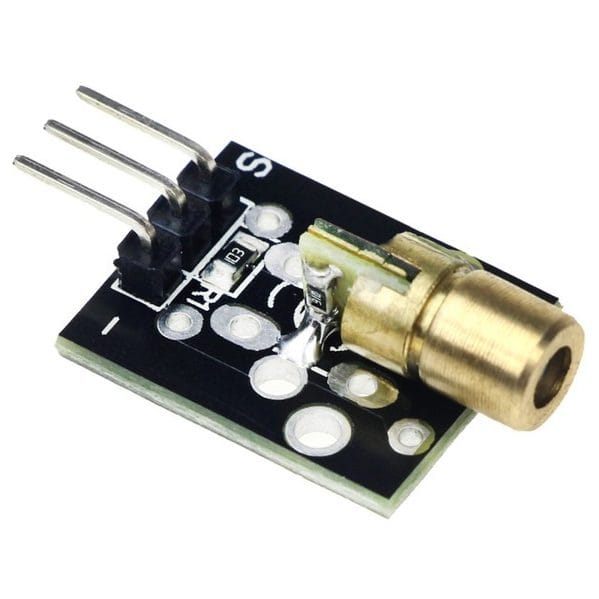

Laser sensor Module 650nm

Laser sensor Module 650nm or laser transmitting module emits a small intense beam of wavelength 650Nm (color: red on visible spectrum). It can be used in various applications like laser obstacle, laser guitar, home-made laser tag, etc. The module is compatible with various contemporary microcontrollers including Arduino, raspberry pi, etc. It is available with a fixed screw hole for easy deployment.

To know more about laser sensor, click here. Laser Sensor

Pay attention to the laser cell to prevent from being burnt or battery explosion due to a short circuit when removing the battery.

PINOUT

1 – GND
2 – 5V
3 – S (Control: HIGH = Laser on)

lasermodule_diag

Weight 40 g
Dimensions 2 × 5 × 1 cm
Supply voltage:

5v dc

Output wavelength:

650 nm

Number Of pins:

3 (gnd, vcc, i/p)
