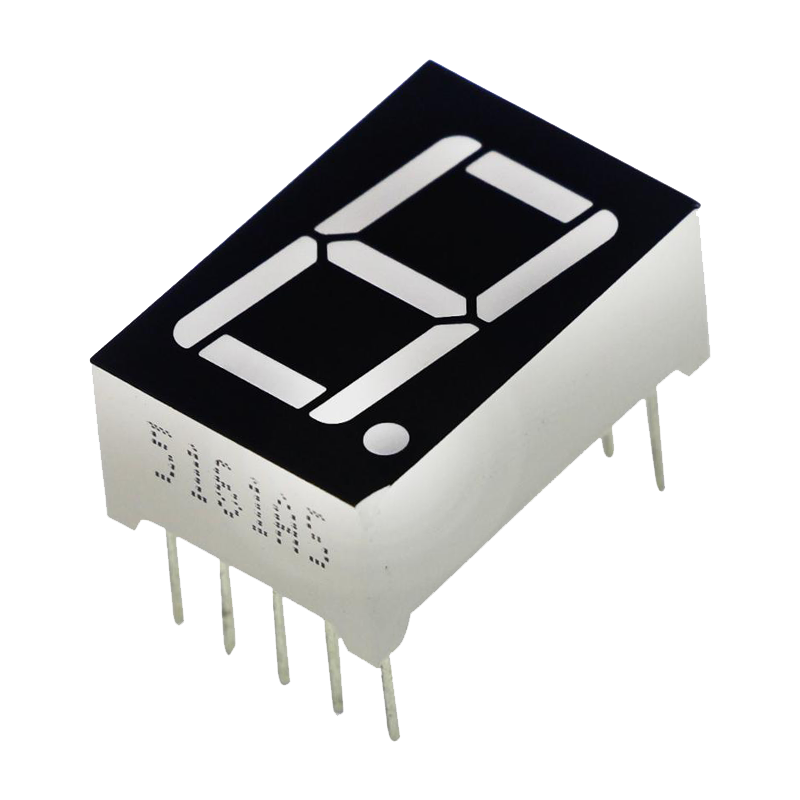

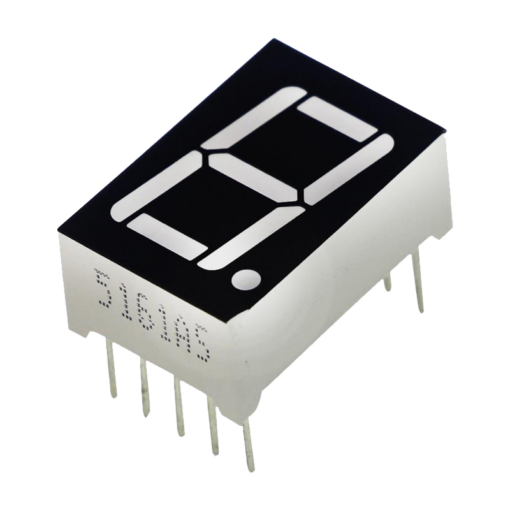

This is a basic, 7-segment display  red in color. It has a common anode. The display features one decimal point per digit and individually controllable apostrophe and colon points. The LEDs have a forward voltage of 3VDC and a max forward current of 20mA. This is the way the display works. It’s multiplexed, so you select the digit by setting its pin (we’ll get into pins later) High, and you select the segment by setting its pin Low. You display multiple digits at once by rapidly cycling through them. Uses timer, counter, watch, stopwatch, token display machine ETC.



Weight 40 g
Dimensions 7 × 4 × 2 cm
Operating Voltage:

2V- 3.5V

Current:

20m Amps

Read Frequency:

125 Khz

LED Colour:

Red
