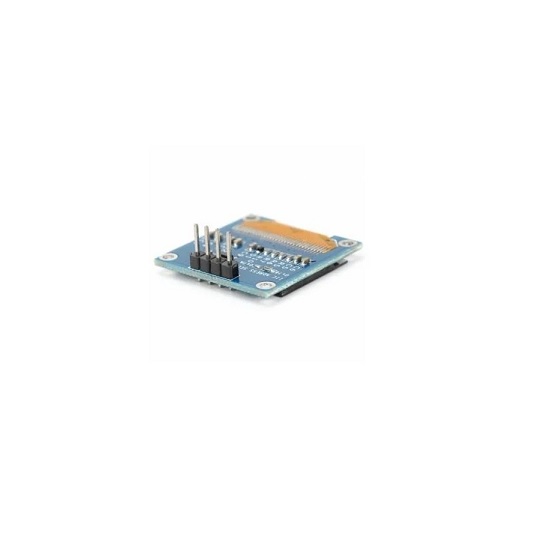

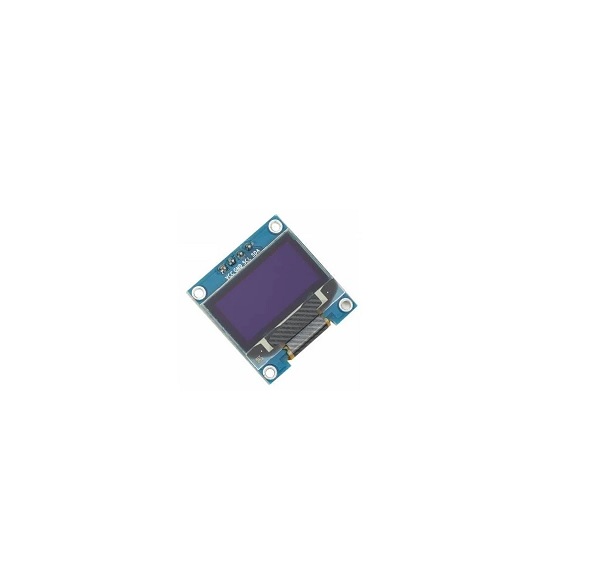

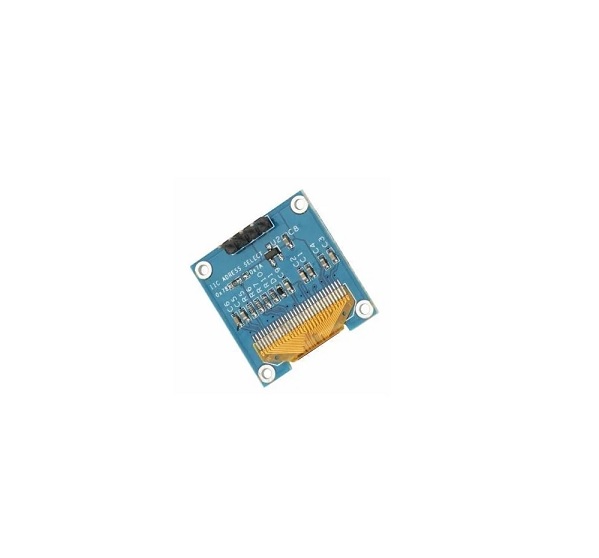

0.96 Inch I2C/IIC 4pin OLED Display Module BLUE

165.00

Features of 4 pin 128 x 64 OLED Display

  1.     Super High Brightness (Adjustable)
  2.     Super High Contrast (Adjustable)
  3.     Embedded Driver/Controller
  4.     Display size: 0.96″
  5.     Resolution radio:128 x 64
  6.     Interface modes: I2C/IIC
  7.     working voltage: 3.3V
  8.     Control Chip: SSD1306

Out of stock

SKU: OLEM00100 Category:

Description

4pin OLED Display Module BLUE

OLED (Organic Light-Emitting Diode) is a self light-emitting technology composed of a thin, multi-layered organic film placed between an anode and cathode. In contrast to LCD technology, OLED does not require a backlight. OLED possesses high application potential for virtually all types of displays and is regarded as the ultimate technology for the next generation of flat-panel display

This 0.96 Inch I2C/IIC 4pin OLED Display Module BLUE can be interfaced with any microcontroller using SPI/IIC/I2C protocols. It is having a resolution of 128×64. The package includes display board, display, 4 pin male header pre-soldered to board.

OLED monochrome 128×64 dot matrix display module. The characteristics of this display module are high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, wide temperature range and low power consumption.

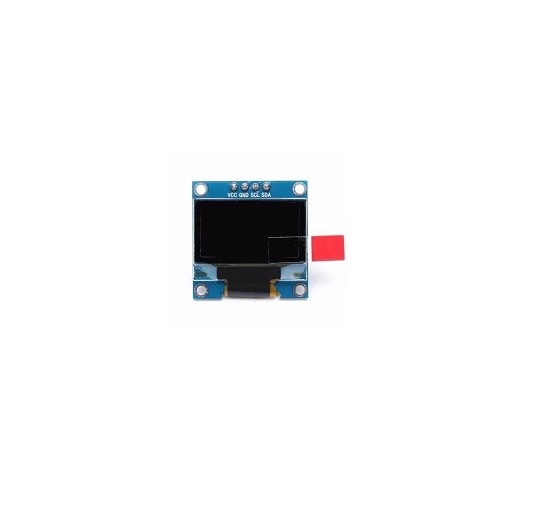

Interface pin for 4 PIN 128×64 OLED
  1. VCC: 3.3 volts – 5 Volts
  2. GND: Ground
  3. SCL: Serial Clock
  4. SDA: Serial Data



Additional information

Weight 7 g
Dimensions 5 × 5 × 2 cm
Pixel Colour

Blue

Resolution

128 x 64 Pixels

Active Display Area

21.74 x 10. 86mm

Driving Voltage

3.3-5V

Operating Temperature

-40º~70º Celsius

Interface Type

I2C IIC
