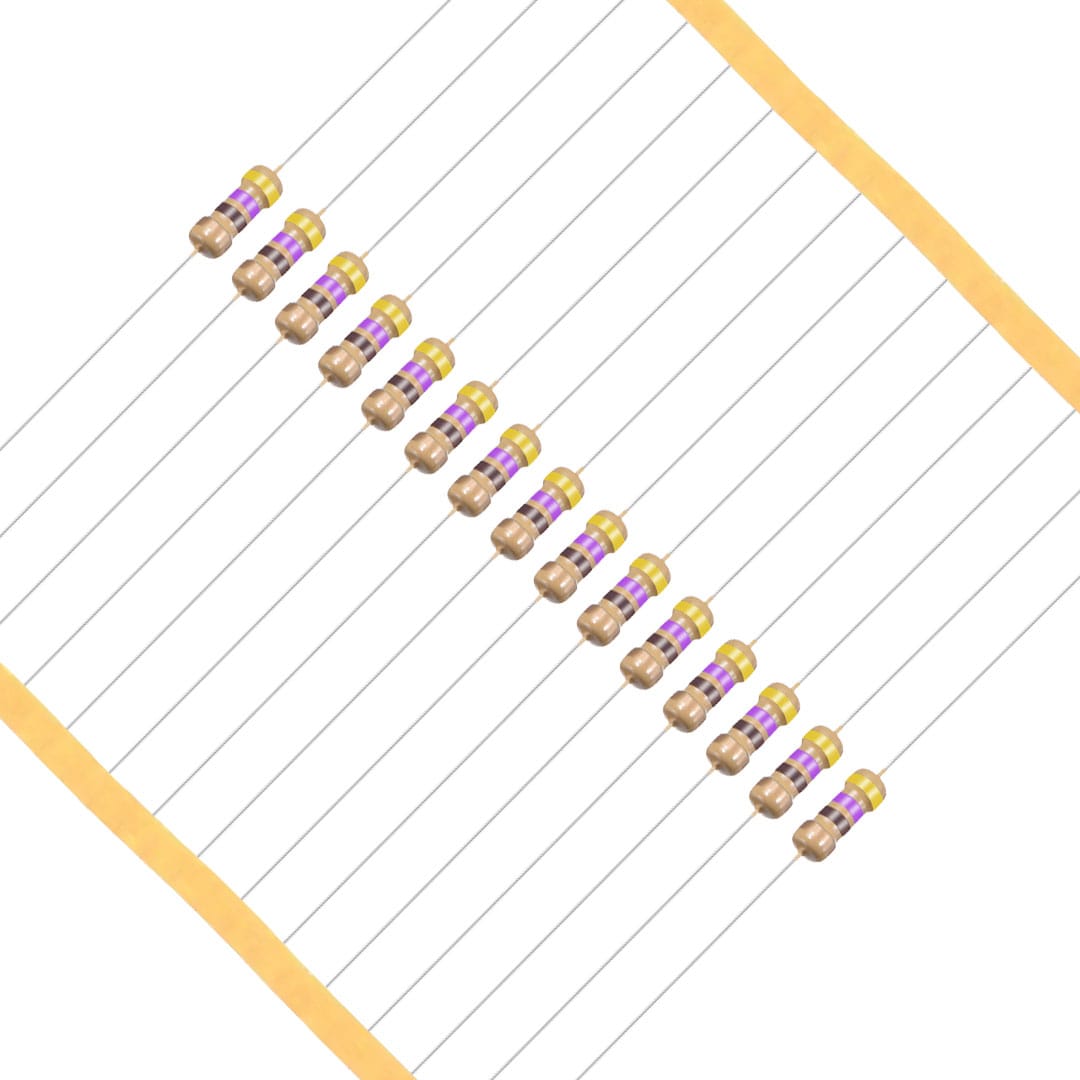

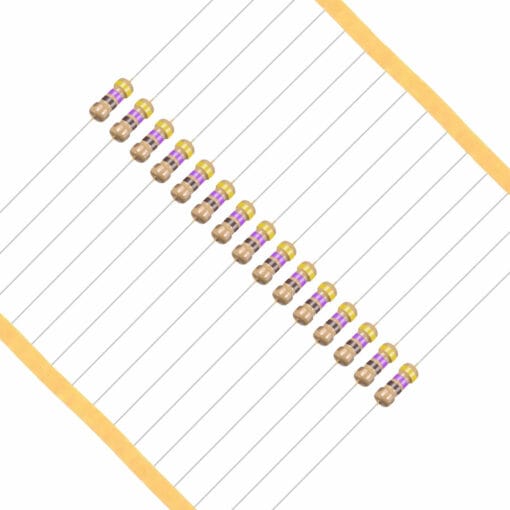

470 Ohm Carbon Film Resistor- Pack of 50 pcs

₹25.00

Resistance Value: 470 Ohms
Rated Power: 0.25 Watt (1/4W); Tolerance : +/- 5%
Carbon Film Resistor – Through Hole; Flame Retardant Coating
Stiff 24 gauge leads (0.022 inches, 0.55 mm) perfect for solderless plug-in breadboards
Package Include 10 x 470 Ohm (Note: Color of resistor may change, so please contact us if you need specific color resistors

GTIN: 8900000007998 SKU: ol-p-0000008

Category: Resistors

This is for through-hole applications.

These are a fixed form type resistors. They are constructed out of a ceramic carrier with a thin pure carbon film around it, that functions as resistive material. These types of resistors are widely used in the electronic circuits.
It has an operating temperature range of -55 °C to 155 °C.
470 Ohm Carbon Film resistor 1/4 W Resistance 0.25 Watt 250mW 5 percent Tolerance For DIY

Weight	40 g
Dimensions	10 × 10 × 1.5 cm
Package	470 Ohm Resistor – Pack of 50 pcs
Brand	Olelectronics
SKU	ol-p-0000008
Categories	Resistors
Quality	High
Part Status	Active
Resistance	470 Ohm
Tolerance	5%
Color Code	Yellow, Purple, Brown, Gold
Type	Carbon Film
Voltage	350V (Maximum)
Power Rating	0.25 Watt
Operating Temp	-55C ? +155C
Maximum Current	23.06mA
Dimensions	Body diameter (2.3mm) x Body Length (6mm) x Lead Length (28mm) x Lead Diameter (0.55mm)
