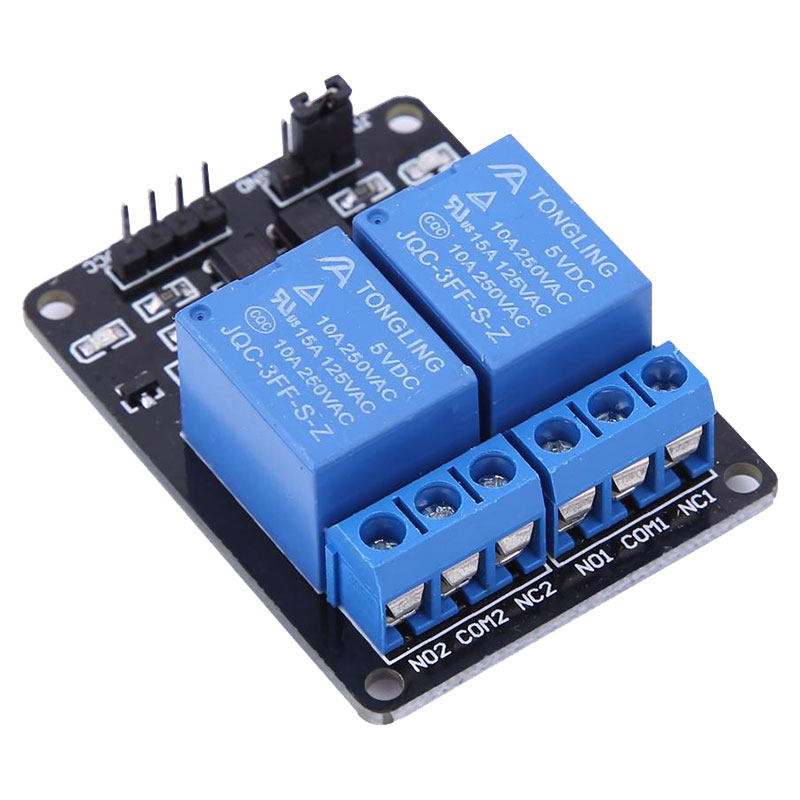

2 Channel 5V Relay Module with Optocoupler
₹76.70
- Low Level Trigger Relay Module
- Two separate LEDs for On/Off indication of the Relay.
- Triggering input voltage 3.3V – 5V
- Two separate LEDs for On/Off indication of the Relay
- Triggering input voltage 3.3V – 5V 4)
- Back EMF protection
- Back EMF protection 2 LEDs to indicate when relays are ON.
- Works with logic level signals from 3.3V or 5V devices
- Opto isolation circuitry
- Module with diode current protection, short response time
- AC Control Voltage: 250V @max.10A
- DC Control Voltage: 30V @max. 10A
Products
2 Channel 5V Relay Module
2 Channel 5V Relay Module with Optocoupler for Arduino DSP AVR PIC ARM.
Features :
- 2 LEDs to indicate when relays are ON.
- Works with logic level signals from 3.3V or 5V devices
- Opto isolation circuitry
- Module with diode current protection, short response time
- Around the board with 4 mounting holes, hole diameter 3. 1 mm, easy installation and fixing
| Weight | 20 g |
|---|---|
| Dimensions | 5 × 3 × 1 cm |
| Logic Input (V) | 3.3 ~ 5 |
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
