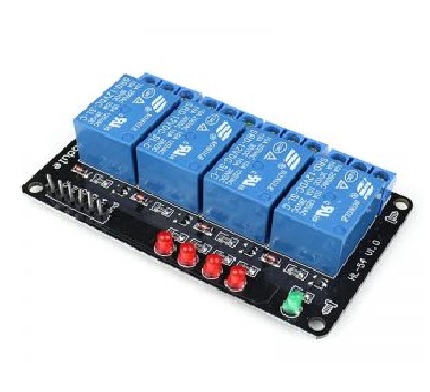

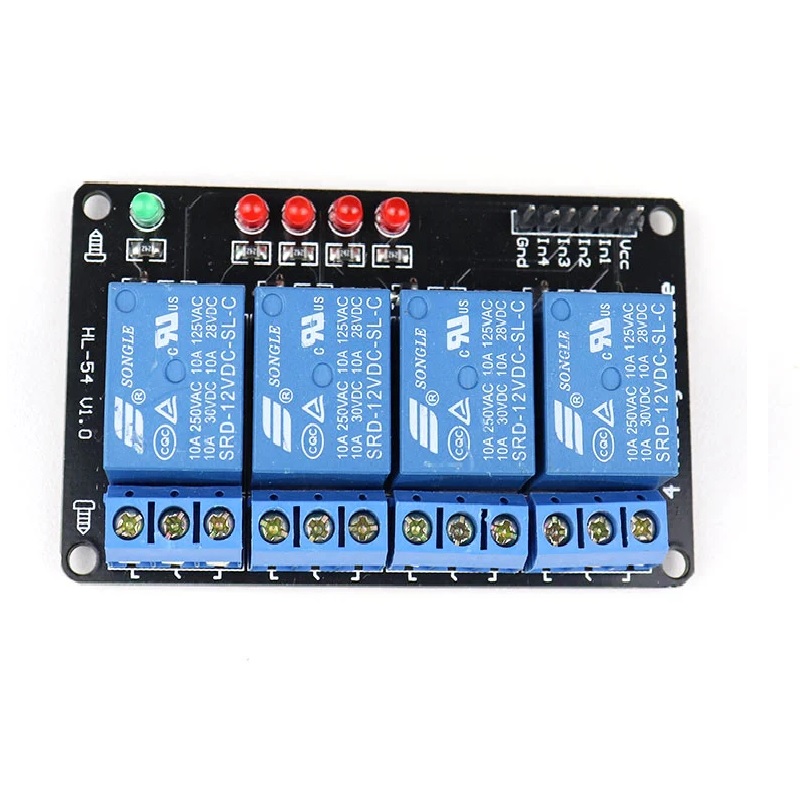

12V 4 Channel Relay Module

115.00

1.Trigger Voltage(VDC):12

2.Trigger Current (MA):20

3.Switching Voltage (VAC):250@10A

4.Switching Voltage (VDC):30@10A

5.Operating Temperature (°C):-40 to 85

6.Opt. Relative Humidity(RH):20% ~ 85%

7.Storage condition (℃):-65 to 125



4 in stock (can be backordered)

GTIN: 8900000011094 SKU: ol-p-0000036 Category: Tags: , ,

Description

12v 4 Channel Relay Module

12v 4 Channel Relay Module interface board that allows you to control various appliances, and other equipment’s with large current. It can be controlled directly by Micro-controller (Arduino, Raspberry Pi, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).

Features:

  1. 12v 4 Channel Relay module and each one needs 15-20mA Driver Current.
  2. Both controlled by 12V and 5V input Voltage.
  3. Equipped with high-current relay, AC250V 10A ; DC30V 10A.
  4. Standard interface that can be controlled directly by microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic active low).
  5. Indication LED’s for Relay output status.
